3 Phase Relay Test Kit MODEL-ESPRTK3Ø

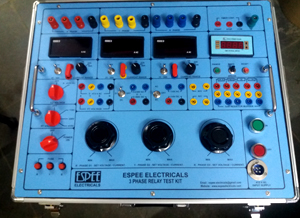

It generate AC 3 Phase Voltage, DC Voltage, AC/DC Fixed Voltage, Output variable 3 Phase current source 10 mA to 50 Amps x 3. Three separate dimmer for voltage & current mode. Relay test kit is made up on MS powder coated cabinet & fix it in travel bag for easy to carry on anywhere.

TECHNICAL SPECIFICATION:

Operating Voltage	415V 3 Phase 50 Hz four wires
Output Voltage	a) 0-415VAC Phase To Phase With respective Neutral 0-230VAC b) 0-230 VAC c) 0-300 VDC d) 110 V AC fixed e) 110 V DC fixed
Output Load Voltage & Current	R Phase –0-100V / 0-5Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V /0- 50 Amps ± 5% Y-Phase – 0-100V / 0-5 Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V / 0-50 Amps ± 5% B-Phase - 0-100V / 0-5 Amps ± 5% 0-20 V/0-25 Amps ± 5% 0-10V / 0-50 Amps ± 5%

FEATURES :

Time range Sec : 9.999,99.99,999.9, 9999 sec.
Timer sensing external No/NC contact.
Timer range reset & make / brake facility.
External current meter calibration facility for all three phases
Multi range current meters.
Output Current : 0 to 5A without CT and 50Amps with CT.
Output current terminal indicating respective phase colour code.
Variable AC Voltage 0-250V / 2A, DC Voltage0-300V / 2A
Fixed voltage 110V AC & DC / 2A
Potential free contact No /NC 6 Amps
External register burden 25 Ω , 100 Ω, 1 K Ω, 2.5K Ω, 50 watts
ON / OFF push button with indicator.
Auto / Manual switch.

PROTECTION

Glass fuse provided for overload and short circuit protection for individual Phases.

ASSESSORIES

Input Supply Cord.
Testing probe for voltage & current .
Sensing probe.
Testing probe with bag.
Operating manual.

DIMENSION

550 X 350 X 200 MM

WEIGHT

40 Kg Approx.
